Remember, these requirements ALL require the approval of the Architectural Committee by submitting a Request For Change form which can be found under the INFORMATION tab under FORMS.
[Door Hardware] [FLOWER PLANTER BOXES]
REPLACEMENT FRONT DOORS
Replacement Front Entry DOORS:
T.M. Cobb brand - Classical Standards Style Panel Entry Doors
Page 60-61 of TM Cobb Catalogue

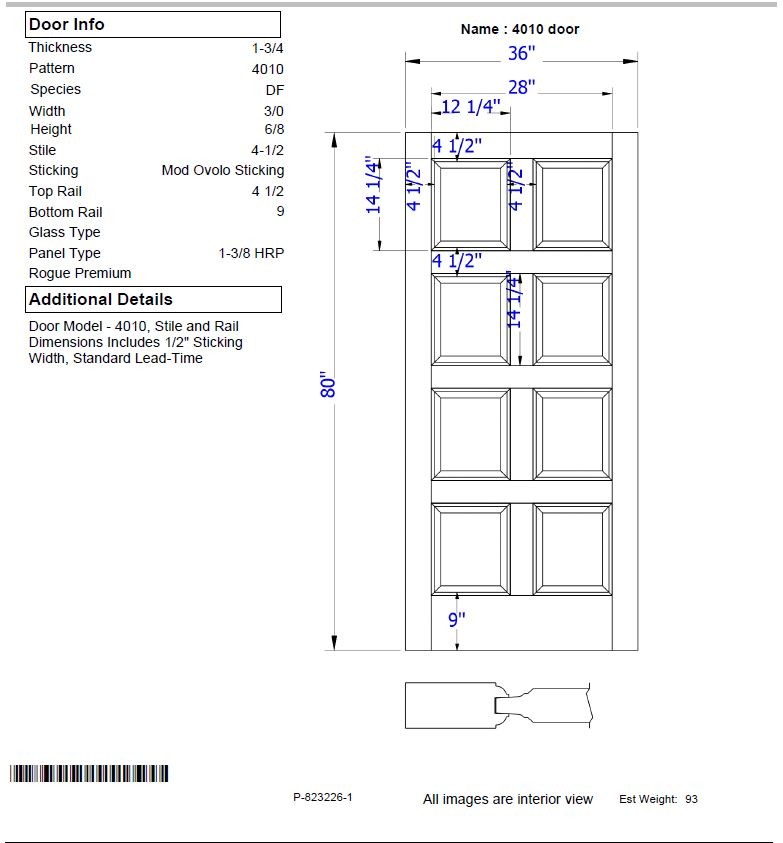

Model: #4010 [F-88 old number] WITHOUT Window Panels
Model: #4010-G (IG) [88-G (SG) old number] WITH Window Panels
Options: Twin Panels may be replaced by GLASS PANELS to allow light in.
Finish: Primer - (to be painted according to Fountains building colors)
Color: Dunn Edwards Spiced Hot Chocolate - DET 691
at DUNN EDWARDS Paints in Long Beach on Lakewood and Willow (under The Fountains)
This Door can be purchased at Ganahl Lumber, Lowes, or Home Depot
Installation can be handled by professionals recommended by Alex or Miriam at Ganahl Lumber.
DOOR HARDWARE
Replacement Front Entry DOOR Knobs:
- Cove Combo Pack and 660 Series Deadbolt
- Finish: Venetian Bronze
- Model: 690CV 11P
This item can be purchased at Ganahl Lumber, Lowes, or Home Depot and found at this website: https://www.kwikset.com/products/categories/door-knobs.aspx
or you may opt for handsets, something like this.
knobs.aspxhttps://www.kwikset.com/products/categories/handlesets.aspx But always in Venetian Bronze.
WINDOWS
Replacement Windows are the MILGARD Tuscany Series windows, in Espresso color with Z-bar installation configurations. You can find information on the company website, http://www.milgard.com/catalog/windows/style/double-horizontal-slider/series/tuscany/double-horizontal-slider.asp
Request for Change application must be submitted to the Architectural Committee prior to installation of new windows and sliding patio doors.
PLEASE NOTE: The Architectural Control Committee has stipulated that ALL windows, including sliding patio doors on the same side of the unit, must be replaced at the time of any replacement. For instance, change both the upper AND lower windows to keep the uniform appearance of the unit.
AIR CONDITIONER CONDENSING UNITS
Due to the original construction of The Fountains, replacement of any Air Conditioner Condensing Unit requires a specific Through-The-Wall unit installation.
the only such unit available seems to be the FIRST COMPANY brand WCX-BB unit.
When contacting your HV/AC company, please specify that they will need to install this specific unit to fit in the wall opening or garage cabinet.
REMEMBER, you will need to submit a Request For Change form to the Architectural Control Committee.
GARAGE DOORS
The replacement Garage Door style is:
- DELUXE Series Collection, Celebrity 25-G style w/ TWO vents.
- Color is Sandstone (or SMOKE from FRAZEE)
Two companies have installed the new garage doors in the Fountains.
Byers and Butler in Signal Hill www.byersandbutler.com/index.htm
or
MesaGarage Doors | Irvine, CA 92614 | (800) 893-1107 | www.mesagaragedoors.com

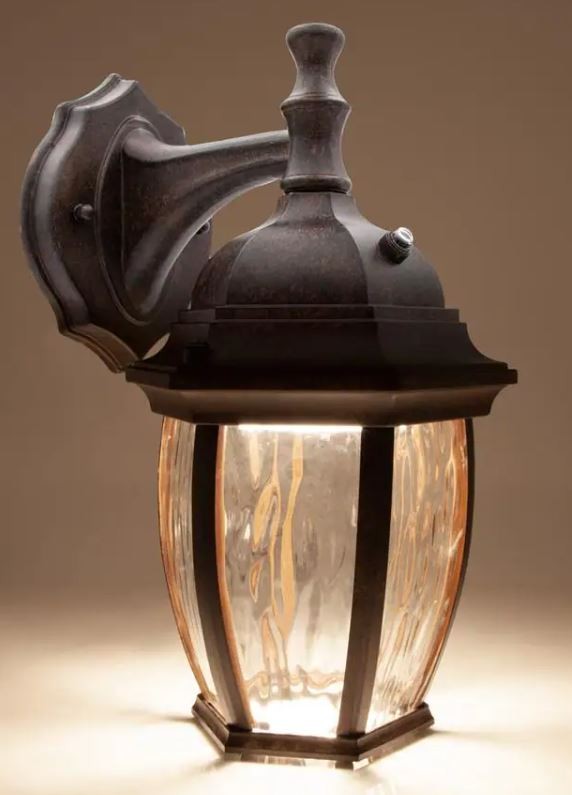

EXTERIOR PORCH LIGHTS
At the request of homeowners, the Architectural Committee found and suggested a preferred style of exterior light fixture for those residents wishing to replace their exterior fixtures.
The following is a basic recommended design (allowing for some personal leeway) to stay with a Bronzed finish, but according to budget and taste. Please try to stay somewhere within the realm of design on the following links.
or
FLOWER PLANTER BOXES
See Documents Page for approved plans. Option 1 or Option 2
But remember, Architectural Committee requires a Request For Change application PRIOR to installation.
SECURITY SCREEN DOORS
Provided by Rapid Screen Doors - 562-439-7825
As of 4/1/22 Rapid Screen is relocating their business and will be back in business in 1-2 months.
